Deskripsi

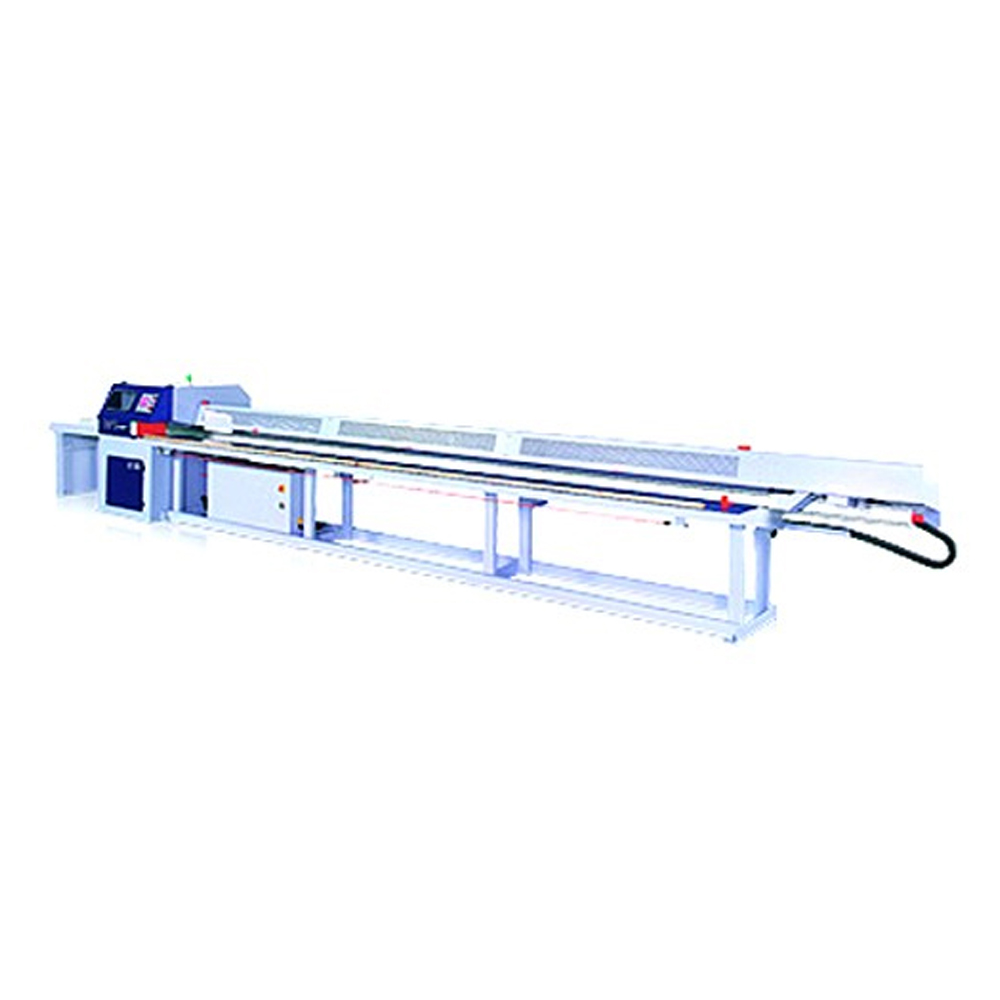

Model : SC-303
Brand : Carpenter
Cutting Thickness : 12-115 mm
Cutting Width : 40-300 mm
Min. Cutting Size : 50 mm
Min. Infeed Length : 170 mm
Min. Timber Cross Section : 40×12 mm
Max. Timber Cross Section : 300×60 / 220×15 mm
Max. Feeding Speed : 100M/min
Cutting Speed (Note1) : 78pcs/per minute
Sawblade Diameter : Φ 505mm(20″)
Saw Arbor Diameter : Φ 25.4mm(1″)
Spindle Speed : 3400rpm
Feeding Servo Motor : 1.73HP(13kW)
Saw Drive Motor : 15HP
Outfeed Motor : OPTION
Air Pressure : 5-6 kg/cm²
Dust Hood Outlet Diameter : 100mm(4″)x2
Machine Dimensions (LxWxH) : 9500x1250x1700 mm
Machine Net Weight (Approx) : 1200 kgs
Machine Gross Weight (Approx) : 1400kgs
