Deskripsi

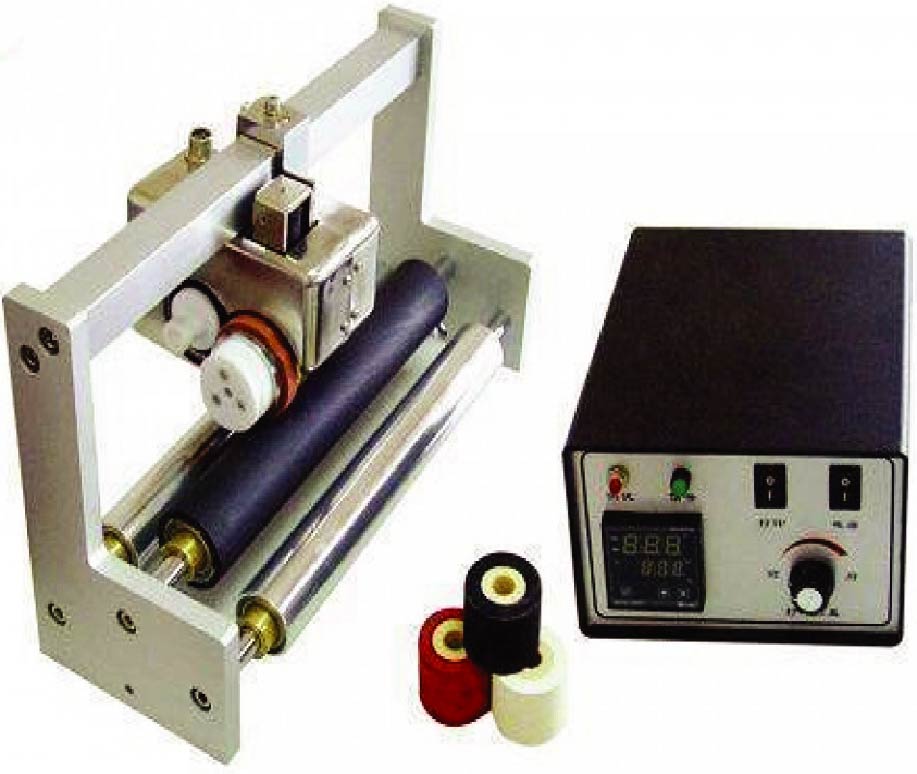

Model : DK-1100
Print Area : – Axial = 40mm – Radial = 45.5mm
Printing Lines :
– T-type (axial) up to 13lines, max. 20 characters perline,
– R-type (radial) up to 10lines, max. 13 characters perline
Font Size :
– T-type 1.15mm, 2.0mm, 2.5mm, 3.0mm x 3.5mm
– R-type 3.5mmx3.5, 4.5, 5.5mm (special letters and font can be-made)
Cycle Rate : up to 300prints/minute
Surface Speed : up to 35meters/minute
Pouch Length :
– ≥38mm(4-up printer)
– ≥75mm(2-up printer)
Type of Print Head :
– Ring-hand (clockwise) – Left-hand(Counter-clockwise)
Control Box : LED display
Ink Roll Required : ø36x40mm
Eletrical : AC100x230V, 50/60Hz
Power : 130W, 2A Fuse
Environmental Operating Temperature : 4-40°C
Relative Humidity : 10-95%
Weight : Print Head 2.0kg Control Box 1.0kg
Dimensions :
– Print Head = 120x100x170mm
– Control Box =180x180x102mm
